DomainKeys Identified Mail (DKIM) is an authentication method used to prevent email spoofing. It increases email security by allowing the receiver mail server to check the authenticity of the sender’s domain.

The DKIM record is a modified TXT record that adds cryptographic signatures to your emails. You add a DKIM record to your domain name system (DNS), and it contains public key cryptography used by the receiving mail server to authenticate a message.

While nearly 85% of all emails go to the spam folder, DKIM can prevent your email from doing so by providing cryptography authentication. It also prevents hackers from altering your message in transit or forging your email account for malicious activities.

What Is a DKIM Signature?

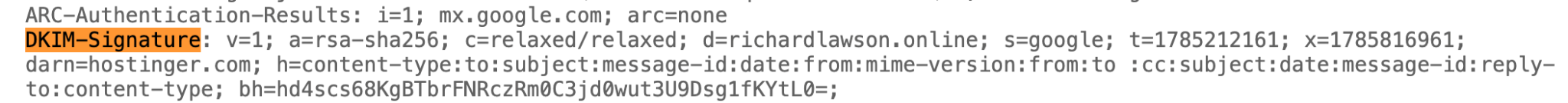

The DKIM signature is a special header containing essential information added to an email message. The DKIM signature header is in a unique textual string format, also known as a hash value

The information presented in a DKIM signature header field uses tag=value pairs. A tag is a single letter, followed by an equal sign, while the value gives specific details of the email sender, the message, and the public key location.

There are required tags that all DKIM signatures must have, as the verification process would fail without them. These include:

  • “v=” is the version of the signature specification. The value is always one
  • “a=” reflects the algorithm of the signature. This value is almost always rsa-sha256
  • “d=” this is the domain name.
  • “s=” indicates the selector record name, used with the domain name identity to locate the public key in DNS.
  • “h=” specifies the list of headers used to create the hash data.
  • “b=” represents the hash data.
  • “bh=” illustrates the computed hash of the mail message.

Some optional tags are not compulsory in a DKIM signature but can help with providing additional security measures. These are the optional tags recommended in DKIM signatures to help identify spam:

  • “t=” is the time of the message. The format is the number of seconds from 00.00.00 seconds on 1 January 1970 in the UTC zone. For example, if you send an email message on 7 May 2021, at 07:42:40 UTC, the “t=” value will be 1,620,373,360
  • “x=” this is the DKIM signature expiration time. Its format is the same as above, but the value must be greater than the time.

Note that the values of the optional tags are automatically generated, so there’s no need to calculate the seconds yourself.

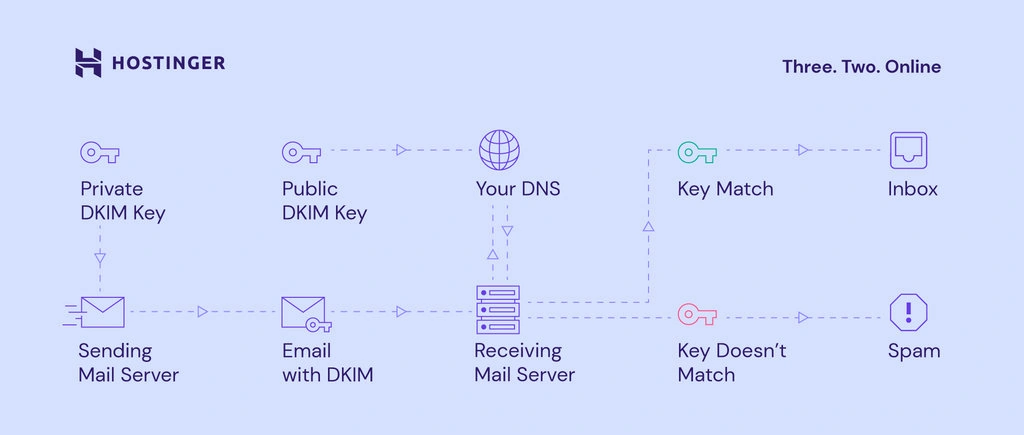

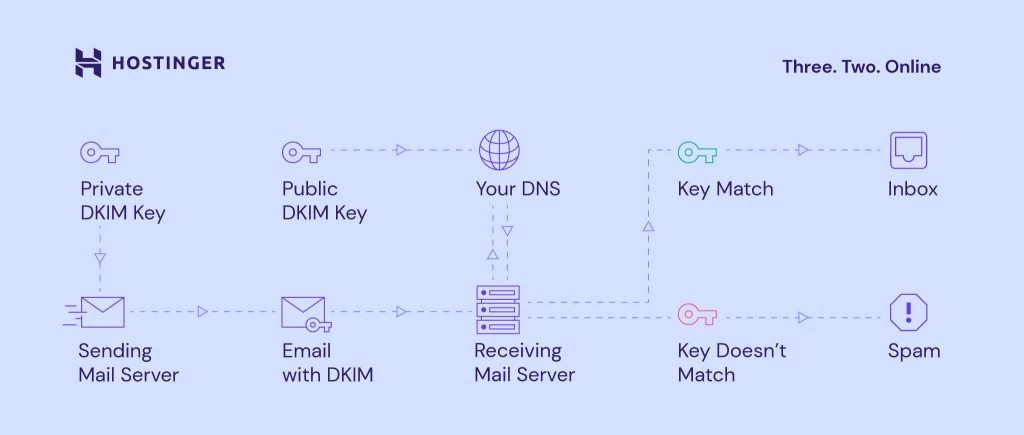

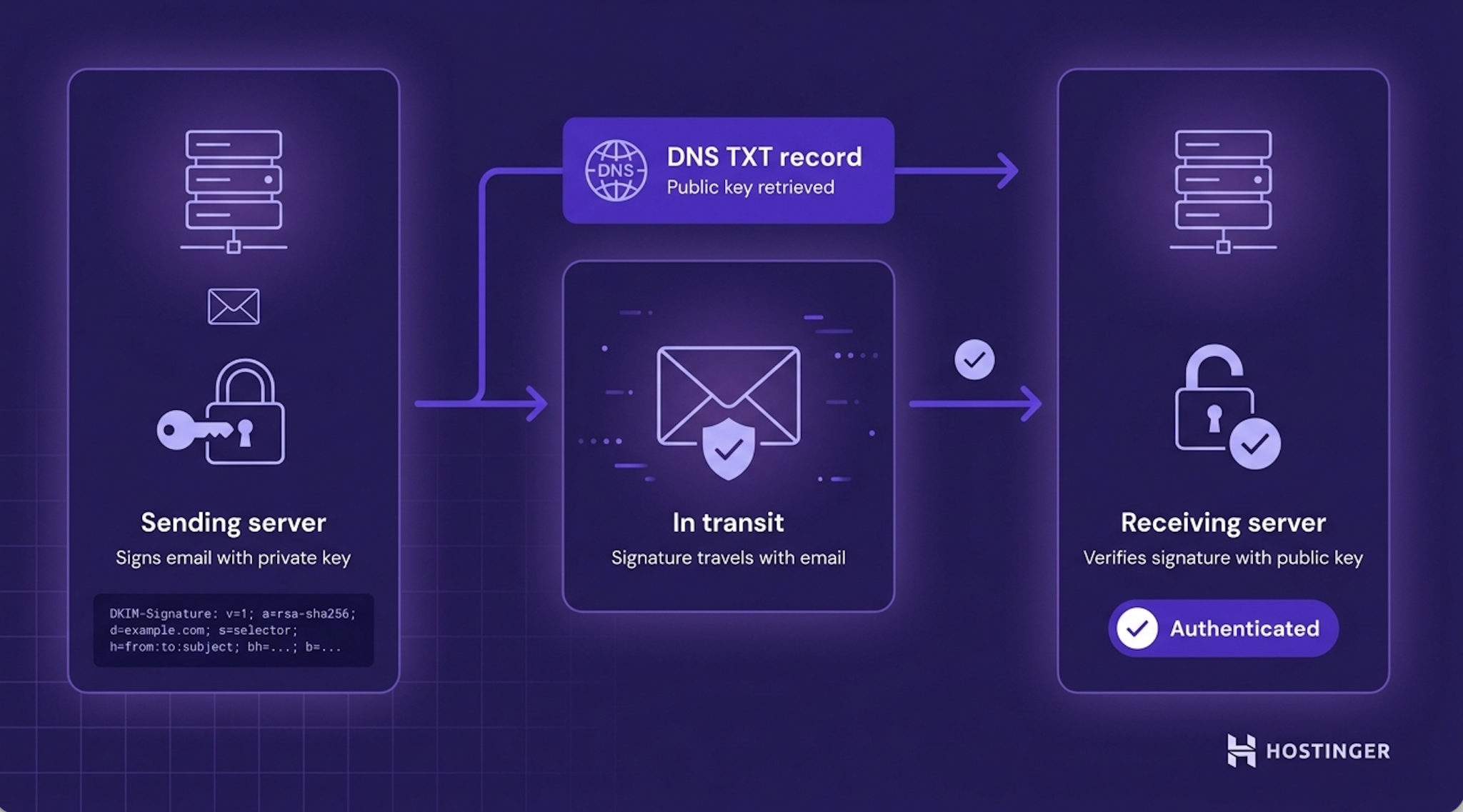

How Does DKIM Work?

Before we show you how DKIM works, you should familiarize yourself with the concept of the two DKIM keys. These include the public key for the DNS record, which helps the receiving server to verify an email message, and a private key for your mail server as part of the authentication process.

All of the DKIM processes take place internally within the mail servers themselves.

For example, you are sending an email message using test@example.com. Before sending a message, the sending mail server will generate a DKIM signature header using a private key.

The mail system will start the DKIM verification by ensuring the DKIM signature matches the sender’s information.

When the message is delivered, the receiving email server will obtain the DKIM record from example.com’s DNS record. The receiving email server then uses the public key in the DNS record to verify the message’s DKIM signature.

If the public DKIM key matches the information in the signature, the message is proven to be authentic and will be moved to the inbox. This means that no one has altered the message in transit.

If the DKIM key doesn’t match the information, the message will most likely go to the spam or junk folder.

DKIM is not the only security standard that protects your email messages. The Sender Policy Framework (SPF) and Domain-based Message Authentication, Reporting, and Conformance (DMARC) standards can also protect your email infrastructure.

SPF restricts those who can send emails from your domain, which protects it from spoofing. SPF is an email authentication protocol that ensures your domain only sends emails from a verified list of servers.

DMARC unifies the SPF and DKIM authentication methods into a common mechanism. DMARC also gives domain owners this mechanism to communicate how to deal with unauthenticated messages.

DKIM, SPF, and DMARC work on different authentication aspects, and they can support one another. Together they provide the best result for email security that will also increase domain reputation and email deliverability.

Is DKIM Really Important?

DKIM authenticates the email sender’s identity to ensure that messages don’t go to the spam or junk folder. It is essential for organizations that often send business emails or transactional emails to their customers.

Part of an organization’s or a business’s responsibility is to protect the integrity of its domain and messages. Without DKIM, hackers can easily send emails that might appear legitimate and potentially scam customers.

DKIM also helps to improve email deliverability as having authenticated emails helps increase the domain reputation among internet service providers (ISPs) and mail servers.

How to Add a DKIM Record for Emails

There are three basic steps to set up DKIM – generate the DKIM keys, enter a public key to the DNS server, and enter a private key to the sending email server.

Most email providers that support DKIM will generate the public key to add to the domain’s DNS record. For this, it’s essential to have access to your DNS record.

Some email services, such as Google Workplace, might generate the private key automatically, or you might have to add it manually.

In the next section, we will show you how DKIM works with different email services.

Adding DKIM Record Using Hostinger’s Email Service

Using an email service offered by web hosting providers can simplify the steps. With Hostinger’s email service, simply set up a Hostinger email, and Hostinger will automatically add the DKIM records.

  1. To set up new Email Accounts, log into your web hosting account and click on the Manage button next to your domain name. From there, select Email Accounts under the Emails section.Screenshot showcasing the email accounts button in hPanel

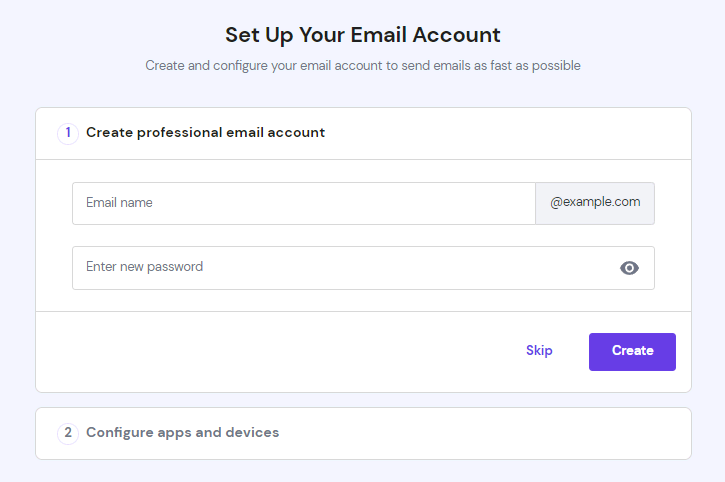

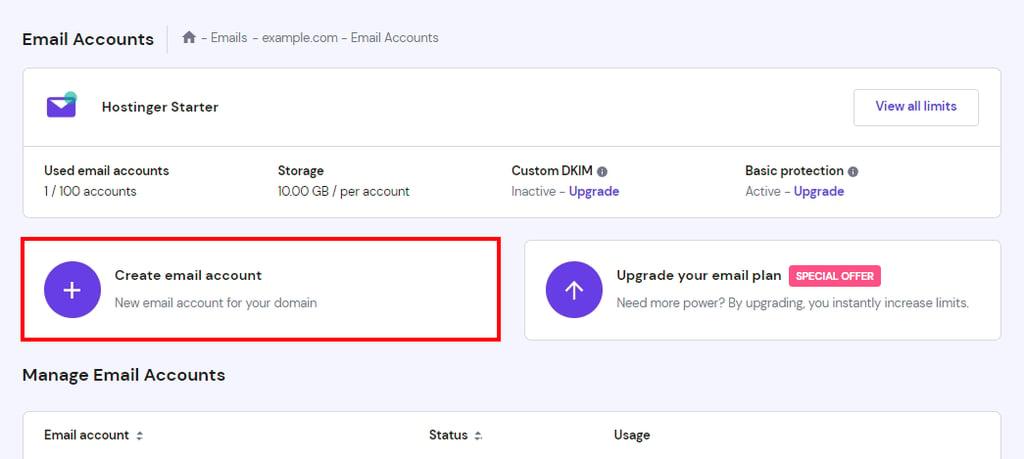

  2. Fill out the form under Create a New Email Account, then click the Create button. Screenshot showcasing the create new email button in hPanel

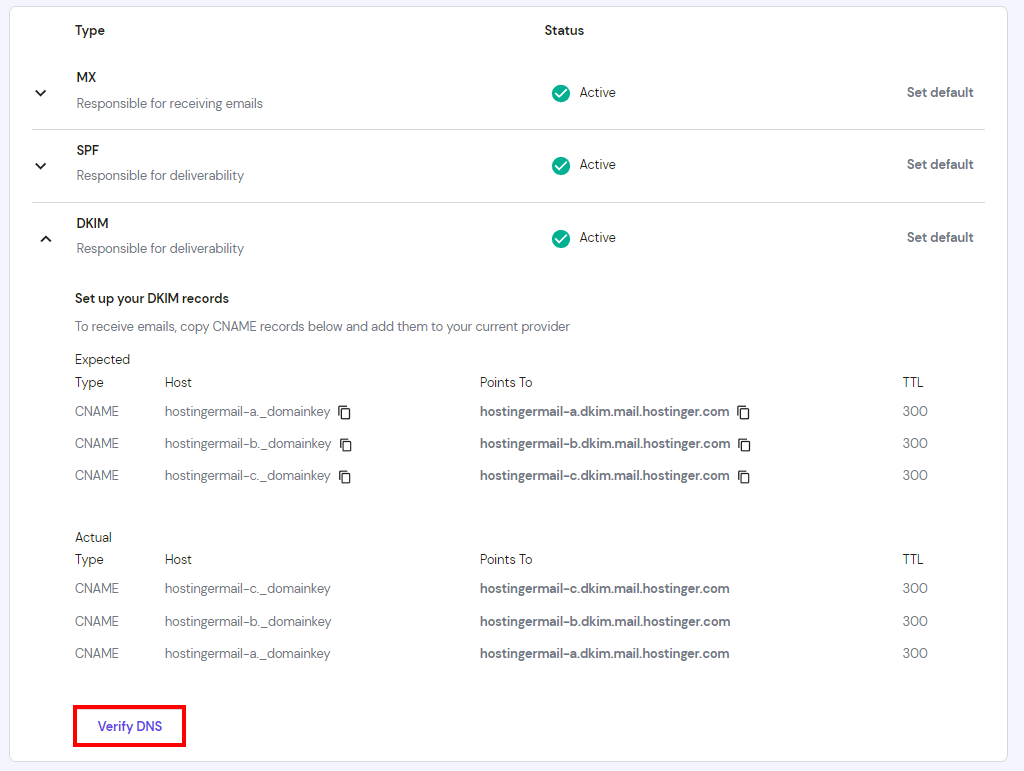

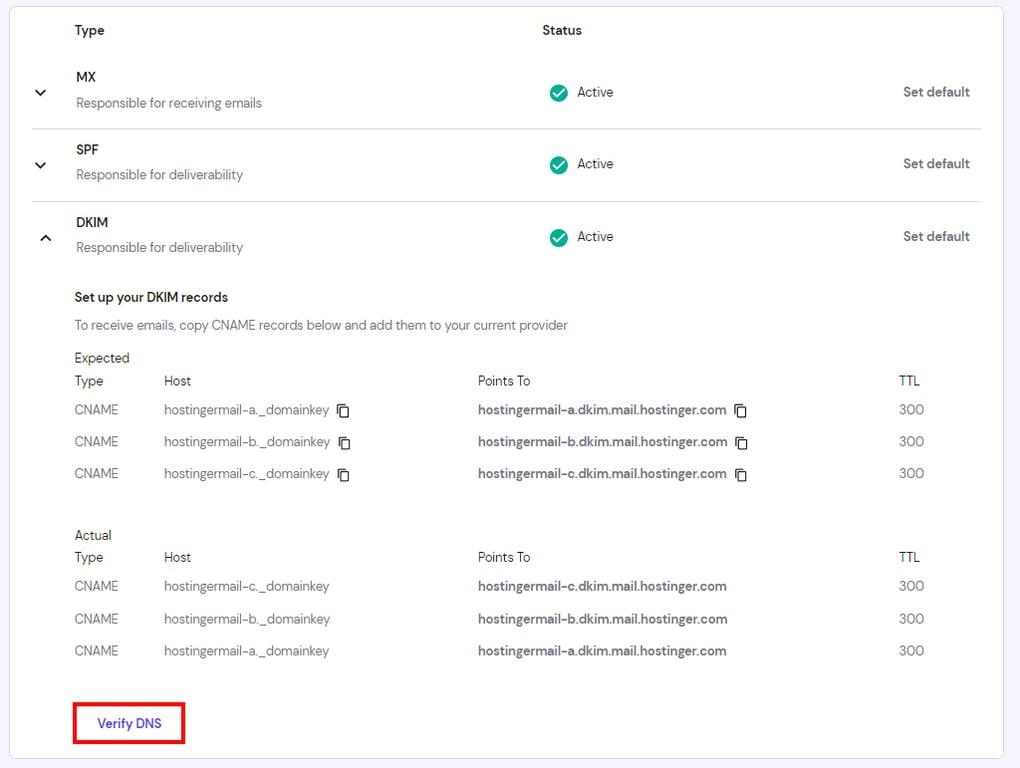

  3. All domain names pointed to Hostinger will have the DKIM CNAME records in the DNS Zone Editor as Hostinger will automatically add DKIM records to your email account. Screenshot of hPanel's DNS zone editor

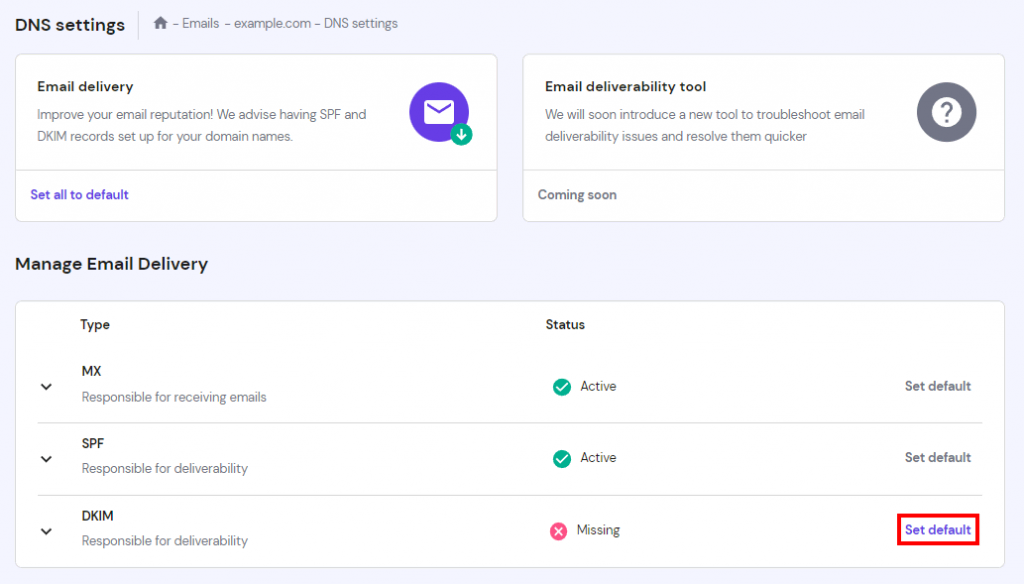

  4. If Hostinger didn’t create the records automatically, then it is possible to add records manually. On the DNS Zone Editor, there is a section under Manage DNS records. DKIM records’ details include:
TypeNameTargetTTL
CNAMEhostingermail-a._domainkeyhostingermail-a.dkim.mail.hostinger.com300
CNAMEhostingermail-b._domainkeyhostingermail-b.dkim.mail.hostinger.com300
CNAMEhostingermail-c._domainkeyhostingermail-c.dkim.mail.hostinger.com300

Note that it takes up to 24 hours for the changes to take effect.

Adding DKIM Records From Other Email Provider

The main setup for DKIM is more or less the same with any email service provider (ESP).

Popular ESPs, such as Titan or Google Workspace, have made it easy and fast for users to add DKIM records. For this section, we will set up DKIM using Google Workspace as an example.

Even though Gmail signs all email messages with the default DKIM domain key, it is better to manually authenticate your email domain for an additional layer of security.

Here are the steps to set up DKIM in Google Workspace:

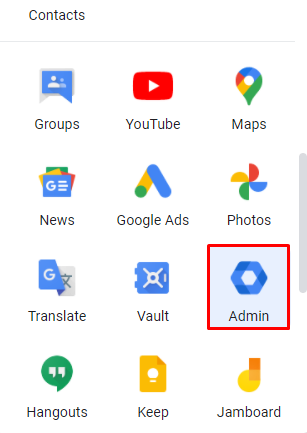

  1. First, log in to your Google Workspace account and select the Admin button under Apps. Note that access to the Admin console homepage is only available for Google Workspace emails. Screenshot showcasing the Admin button in Google Workspace

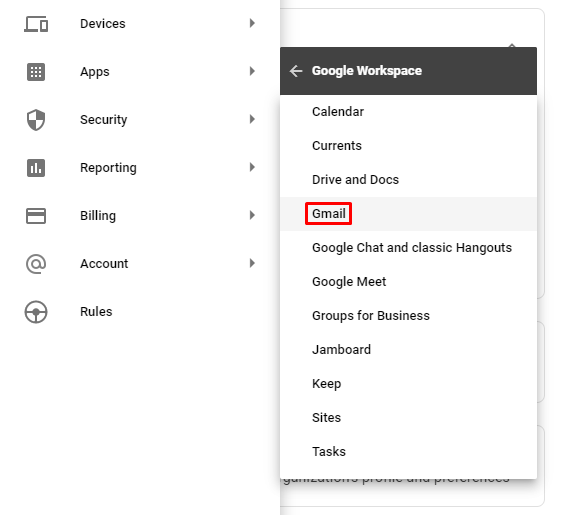

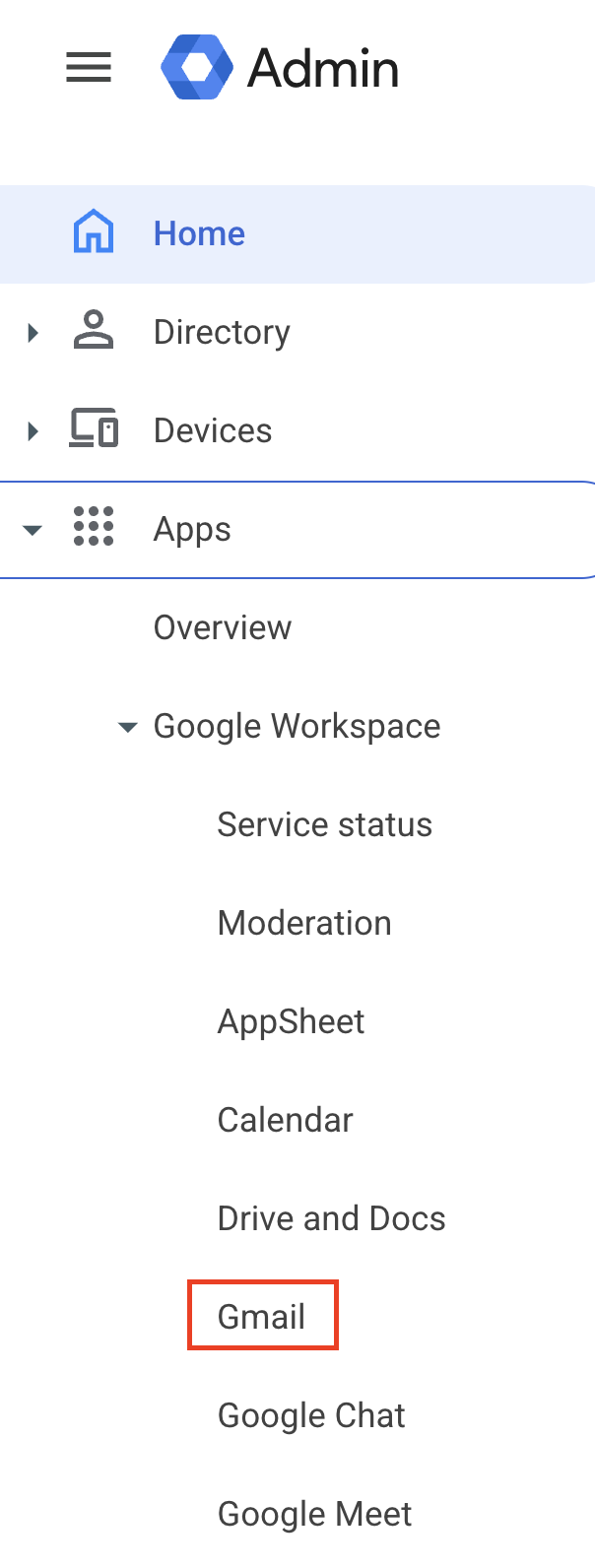

  2. From the Admin console homepage, click on the three lines on the header next to Google Admin. Head to Apps -> Google Workspace -> Gmail to start the authentication process.Screenshot showcasing the gmail button in Google Workspace

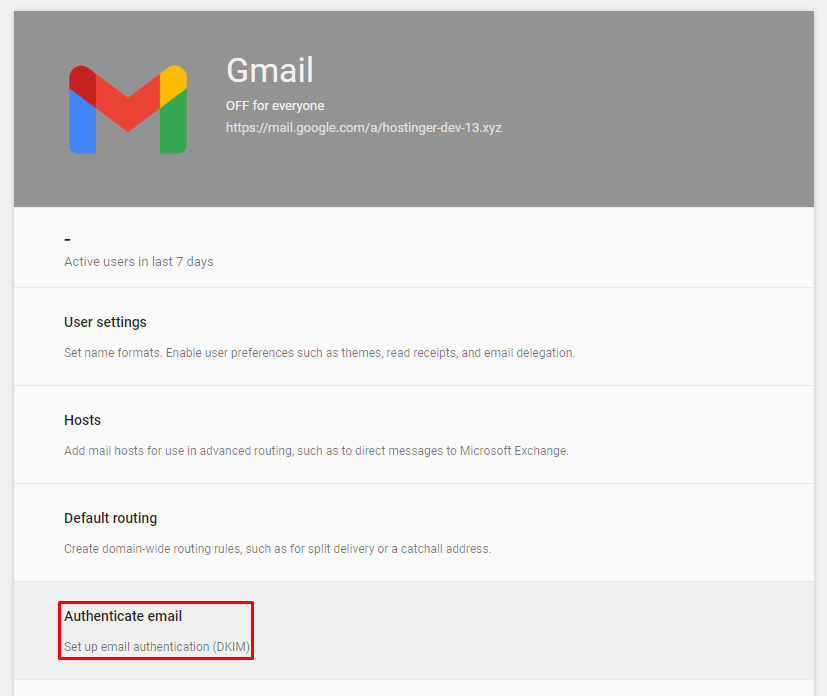

  3. Click on Authenticate email to set up DKIM.Screenshot showcasing the authenticate email button

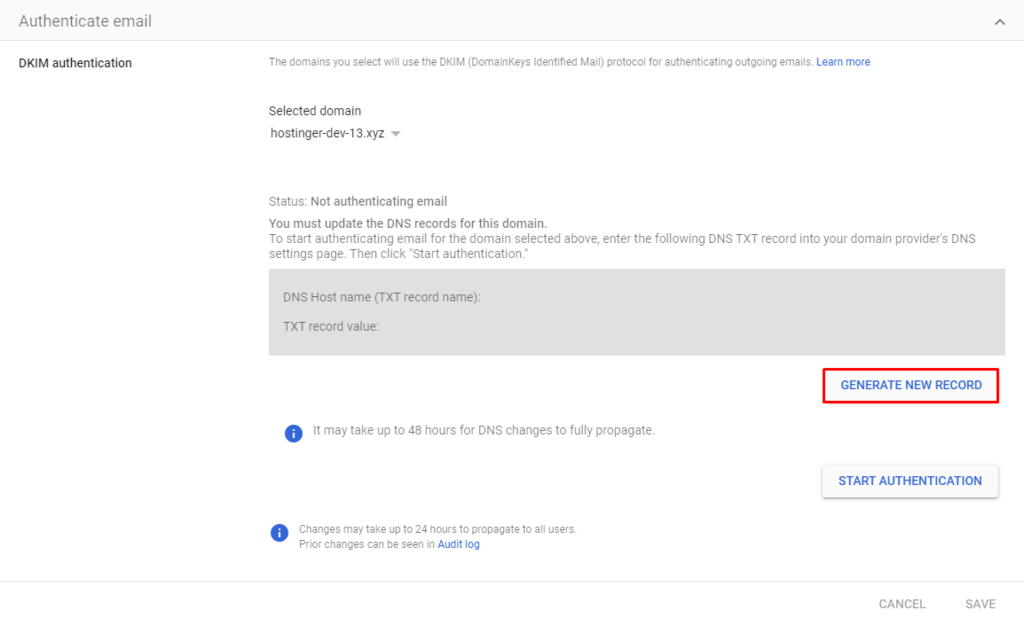

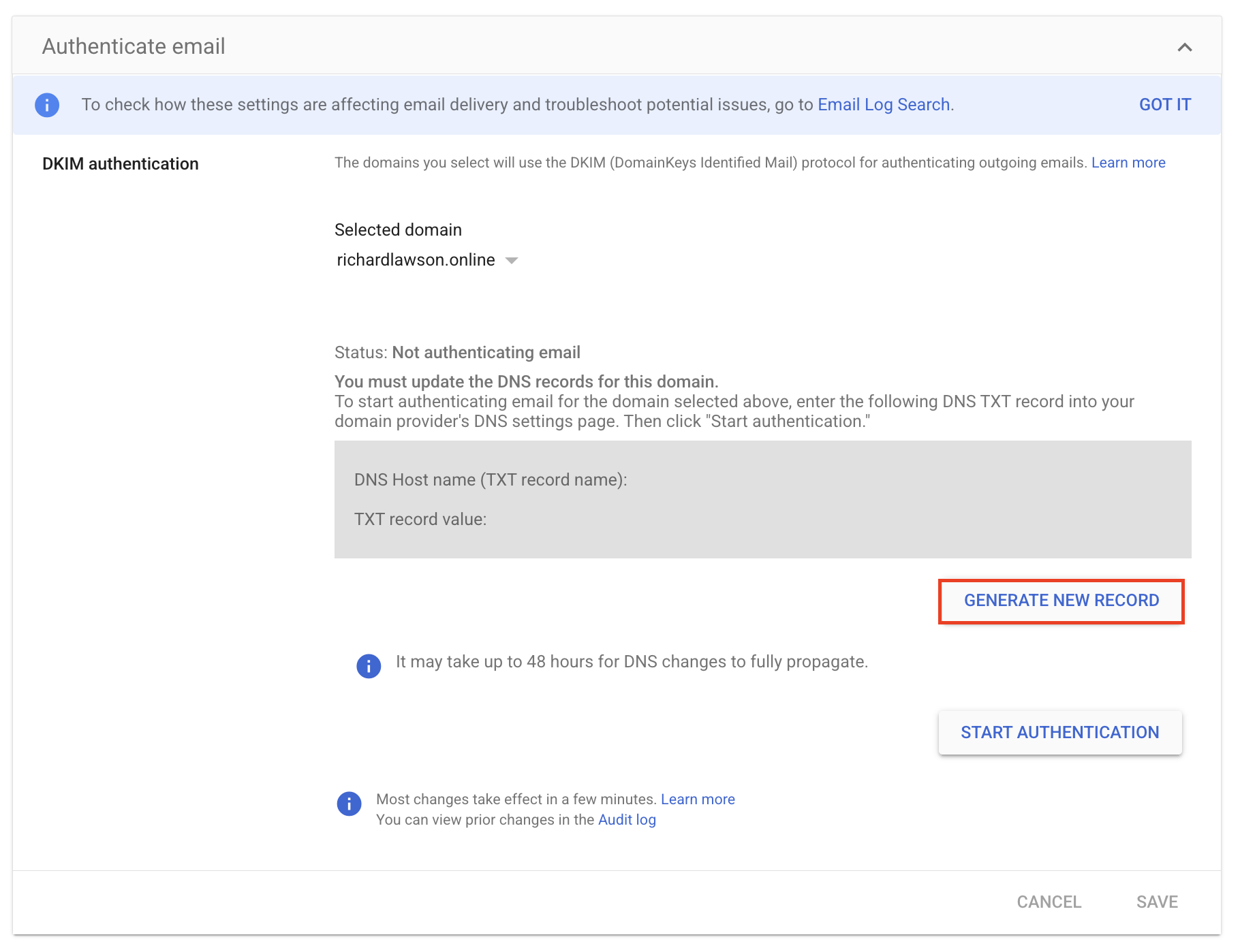

  4. Don’t change the Selected domain as it will automatically be your domain. Simply click on GENERATE NEW RECORD.Screenshot showcasing the Generate New Record button

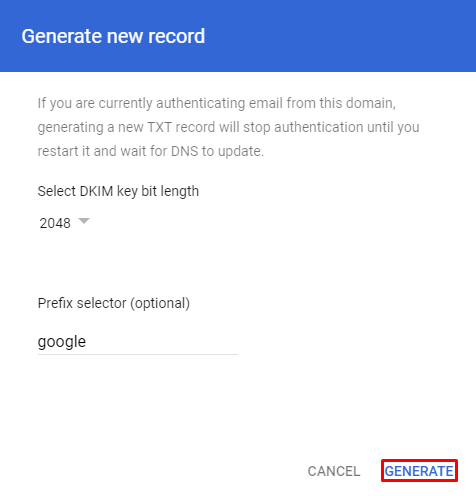

  5. First, select the DKIM key bit length. We recommend selecting 2048 for a more secure option. Some domains only support a 1024-bit key, so make sure to check with your domain host. The Prefix selector can stay as “google”. Click GENERATE to proceed.Screenshot showcasing the Generate button

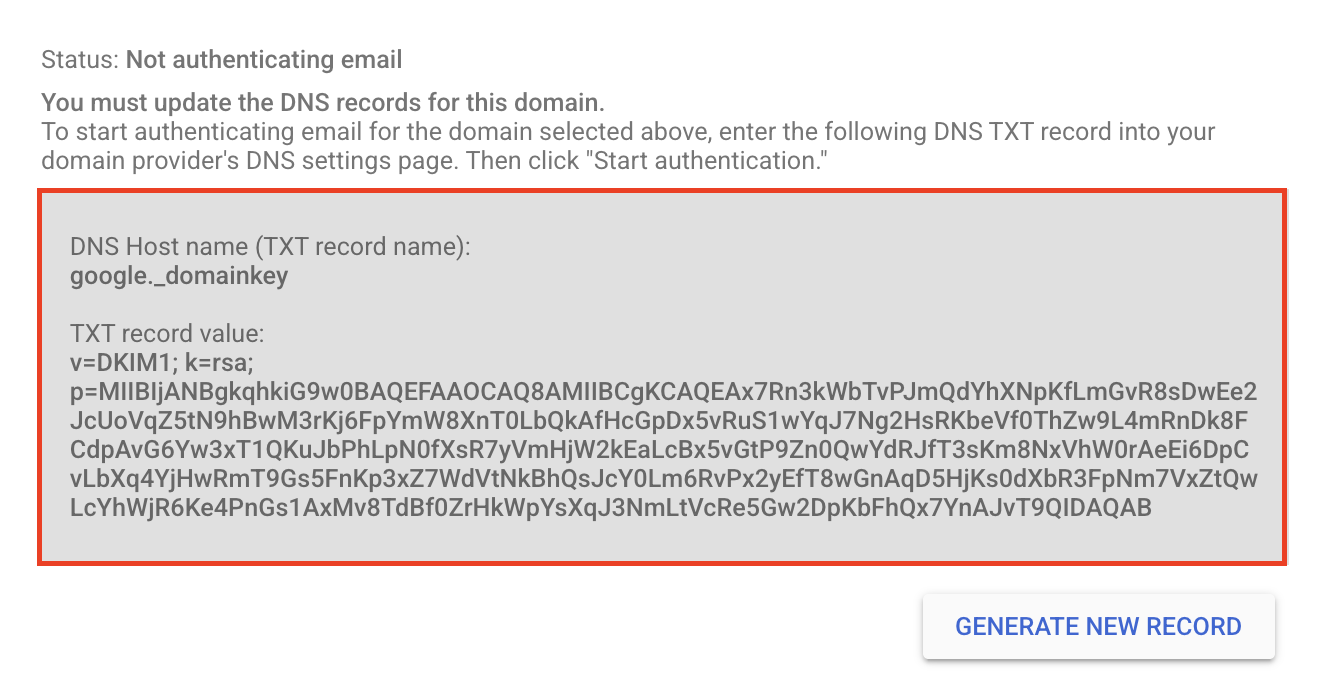

  6. This will generate the TXT record value for the public key. Head to the DNS Zone Editor on your domain server to add the DNS records.Screenshot showcasing the DNS Zone Editor button in hPanel

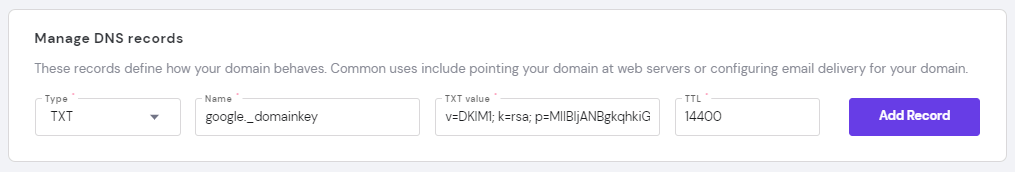

  7. Add the record generated by Google under Manage DNS records. The receiving server can use this key to verify your messages.Screenshot of the Manage DNS Records section
  8. Head back to the Google Workspace authentication page, then click on the START AUTHENTICATION button to turn on DKIM signing.
  9. To verify that the DKIM security standard works, send an email message to someone who uses Gmail or Google Workspace.

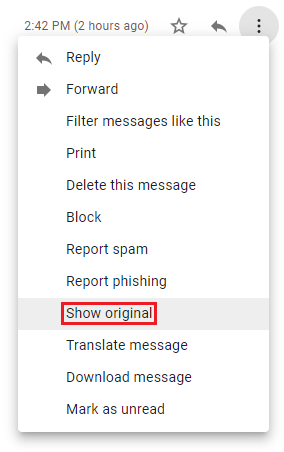

  10. Access the receiving email’s inbox and open the message. Click on the three dots on the top left and select Show original.Screenshot showcasing the Show original button

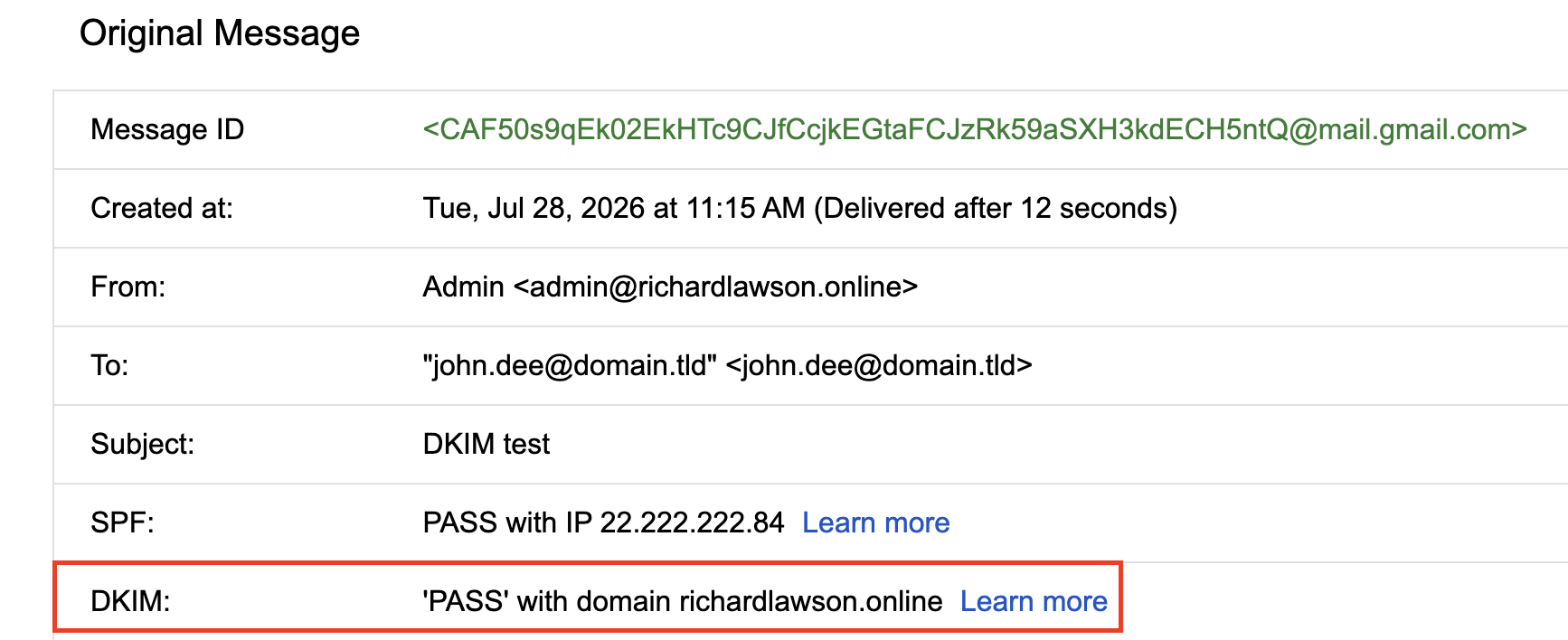

  11. If the DKIM is already working, then it will display PASS in front of your domain name, which means that the domain is secure.Screenshot of the DKIM PASS display

Keep in mind that changes may take up to 24 hours to propagate.

Adding DKIM Records When Running a Private Mail Server

A DKIM generator, such as SparkPost, is needed to generate the keys for the signature when you’re running your own mail server. Some generators give you the option to create your selector, and others will make it for you.

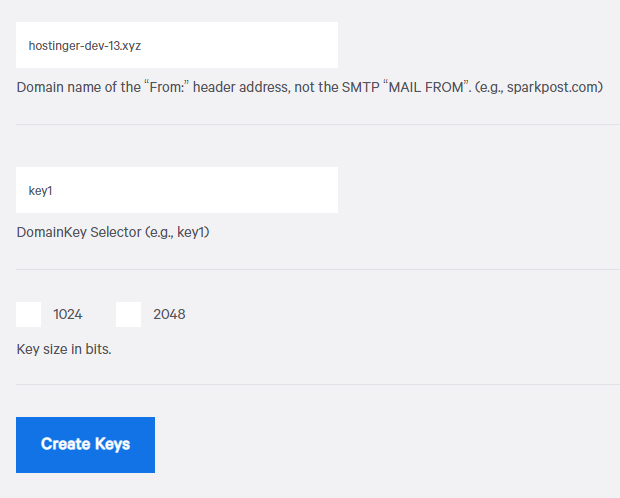

Screenshot of a DKIM generator window
  1. Once the keys have been generated, copy the public DKIM key and add it to the DNS records. Select TXT for the type, and the name will follow this format:



    Selector-name._domainkey
  2. Paste the public DKIM key in the Target or Content section. For the private key, ensure that the email server supports DKIM.
  3. Create a new text file with the private key. Make sure to copy everything from BEGIN RSA PRIVATE KEY to END RSA PRIVATE KEY.
  4. Save the file to C:\pmta on Windows or /etc/pmta on Linux.
  5. Go to the domain’s control panel and select the text file under DKIM signing.
  6. Lastly, add the selector name there to finalize the DKIM signature process.

Conclusion

To prevent the delivery of harmful emails or spoofing, it is your responsibility to protect all messages from the domain. This is especially true for businesses, as marketing emails don’t want to end up in the spam or junk folder.

One of the solutions to this problem is adding a DKIM record and signature. The email servers of the sender and receiver will authenticate your messages using private-public DKIM keys. The DKIM standard will also improve email deliverability and work well with SPF and DMARC.

We have shown you the different ways to add a DKIM record and signature. Adding DKIM records can be done using Hostinger’s email service, Google Workspace, and with a private mail server. Whichever method you choose, make sure to get the private-public DKIM keys first.

Now you can easily secure every message you send from your domain. Good luck.
